Voice of Saturn Voltage Controlled Filter EVERYTHING KIT

$121.99

KIT: Frac Rack Voltage Controlled Filter. Two input gains, one output, cutoff and resonance are all VC and knob controllable.

Out of stock

SKU: ci0269 Category:

Description

KIT Version Description:

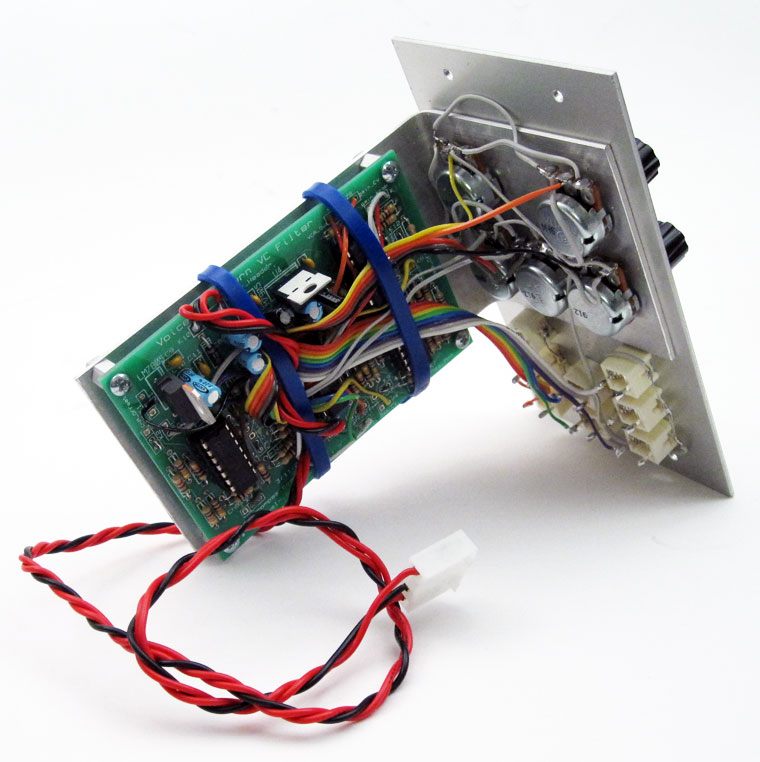

The VoS Voltage Controlled Filter is based around a CEM3372 filter IC (4-pole resonant low-pass filter)–the same chips found in the filters of such analog classics as the Sequential Circuits Prophet 600, Prophet T8 and Oberheim Xpander.  It features two inputs that are summed and then fed into the low-pass filter. The input and output volumes, cutoff frequency and resonance can all be controlled by VC (voltage control) or knobs.

One very cool feature of the CEM series filter chips is that as the resonance is turned up, the volume level does not drop as dramatically (as it does in other analaogs, including the famous Moog Ladder Filter).

Feature Summary:

  • Voltage input is 0-5V, but will tolerate 0-10V.  Note: the knob and voltage control add, so if one is already at 5V, the other will have no effect.
  • Frac Rack / Blacet Panel, works with -12,0,12 or -15,0,15 system voltages
  • 5 control parameters:
    • Input A Gain
    • input B Gain
    • Output Gain
    • Cutoff Frequency
    • Resonance



Documents:



Video from Previous Incarnation (pcb is the same, different panel, original no longer available):


Voice of Saturn Voltage Controlled Filter from CuriousInventor .
